Description
Overview
Blackmagic PYXIS 12K is a modular, full-frame digital film camera built for everything from
stealth gimbal work to full broadcast rigs. Record 12-bit Blackmagic RAW at up to
12 288 × 8 040, stream low-latency IP video over 10 Gb Ethernet, and
monitor on the built-in 1 500-nit touchscreen—all in a rugged aluminium cube.
Key Features
- 12 K RGBW sensor (35.6 × 23.3 mm) with optical low-pass filter
- 16 stops of dynamic range • native ISO 800
- Active L-Mount for full-frame photo & cine glass
- Dual CFexpress Type B + USB-C SSD recording
- 12 G-SDI out, 10 Gb Ethernet, Wi-Fi & Bluetooth control
- High-speed: 12 K 40 fps • 8 K 90 fps • 4 K 120 fps

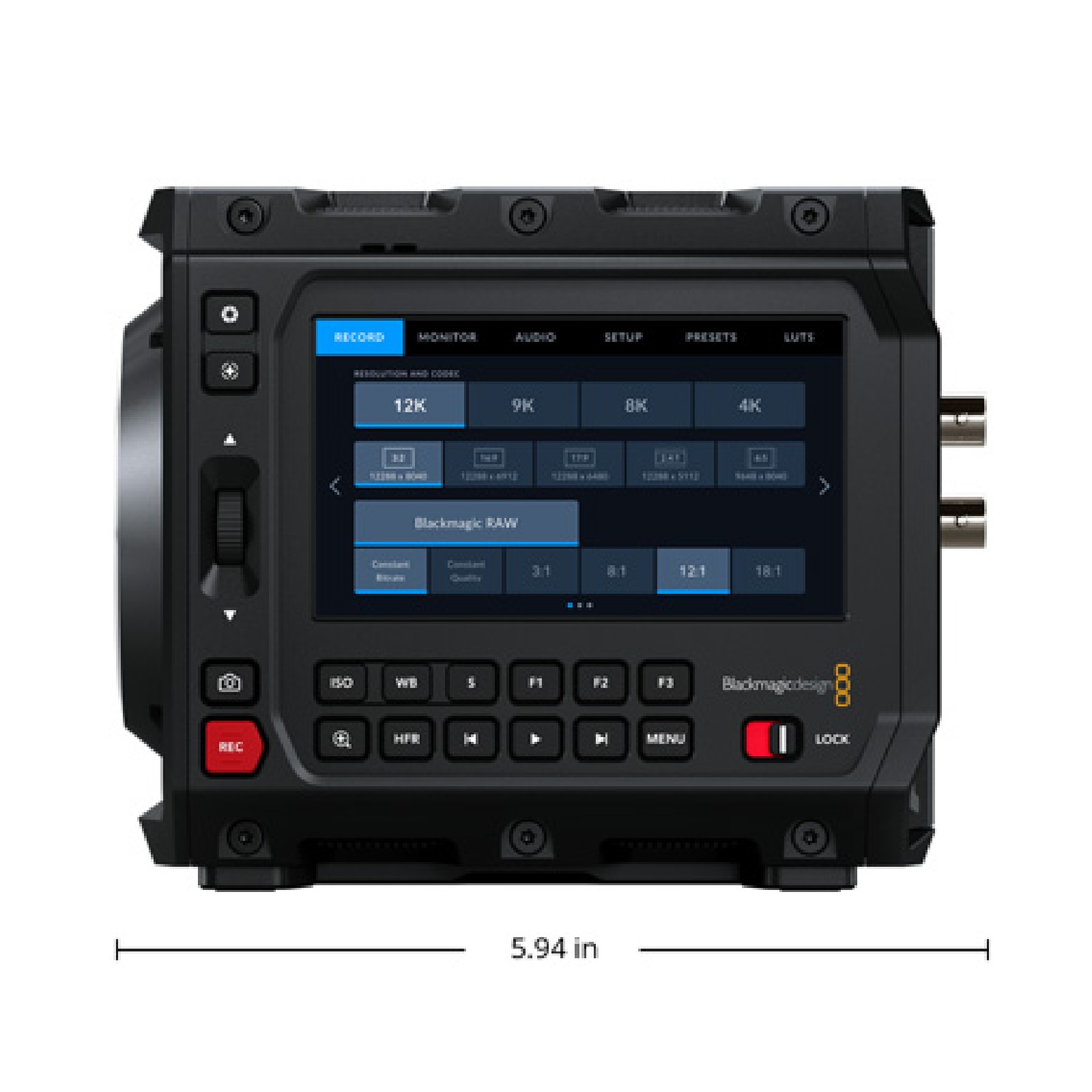

- Blackmagic OS with 4″ 1 500-nit touchscreen
- Mini-XLR input with phantom power + onboard stereo mic
Technical Specifications
| Sensor resolution | 12 288 × 8 040 (open-gate 3 : 2) |
|---|---|
| Dynamic range | 16 stops |
| Lens mount | Active L-Mount |
| Recording media | 2 × CFexpress Type B • USB-C SSD |
| Video outputs | 1 × 12 G-SDI • USB-C viewfinder |
| Network | 10 Gb Ethernet RJ-45 |
| Display | 4″ LCD touch, 1 500 nits |
| Power | 18 V DC (90 W PSU) • BP-U slot |
| Body dimensions | 142 × 110 × 110 mm |
| Weight | 1.8 kg (body only) |
What’s in the Box
- Blackmagic PYXIS 12K body
- Lens turret dust cap
- PYXIS Standard Plate & SSD Plate
- 90 W locking-connector PSU (intl. plugs)
- DaVinci Resolve Studio licence
Lead Time & Delivery
Special-order item – ships 20 – 28 business days after cleared payment.
You’ll receive automatic tracking updates the moment it leaves our warehouse.
Resources
- Official tech specs – view on Blackmagic Design
- User manual (PDF)
- Sample 12 K BRAW clip
