The Mini Converter SDI to Analog provides high-quality conversion from SDI to analog video formats, supporting both SD and HD resolutions. Ideal for integrating SDI video feeds into legacy analog systems, it supports component, composite, and S-Video output along with balanced analog or AES/EBU audio. This SDI to analog converter includes automatic format detection, a strong metal enclosure, and a universal power supply, making it suitable for studio, field, or AV system applications. Its reliability and flexibility make it a trusted tool for mixed-format workflows.
Key Features
- Convert SD/HD-SDI to analog video
- Outputs: component, composite, or S-Video
- Includes balanced analog and AES/EBU audio output
- Automatic format detection for ease of use
- Supports 525i, 625i, 720p, 1080i, and 1080p
- Rugged metal design for durability
- Includes 12V universal power supply with adapters
- Compact form factor ideal for installations
Technical Specifications
| SDI ვიდეო შეყვანა | 1 x SD/HD-SDI |
| Analog Video Output | 1 x component, composite, or S-Video |
| ანალოგური აუდიო გამომავალი | 2 x XLR balanced audio |
| AES/EBU Audio Output | 1 x XLR |
| Supported Formats | 525i, 625i, 720p50/59.94/60, 1080i50/59.94/60, 1080p23.98/24/25/30 |
| კვების ბლოკი | 12V universal with locking connector |
| Ენერგომოხმარება | 5.52 Watts |

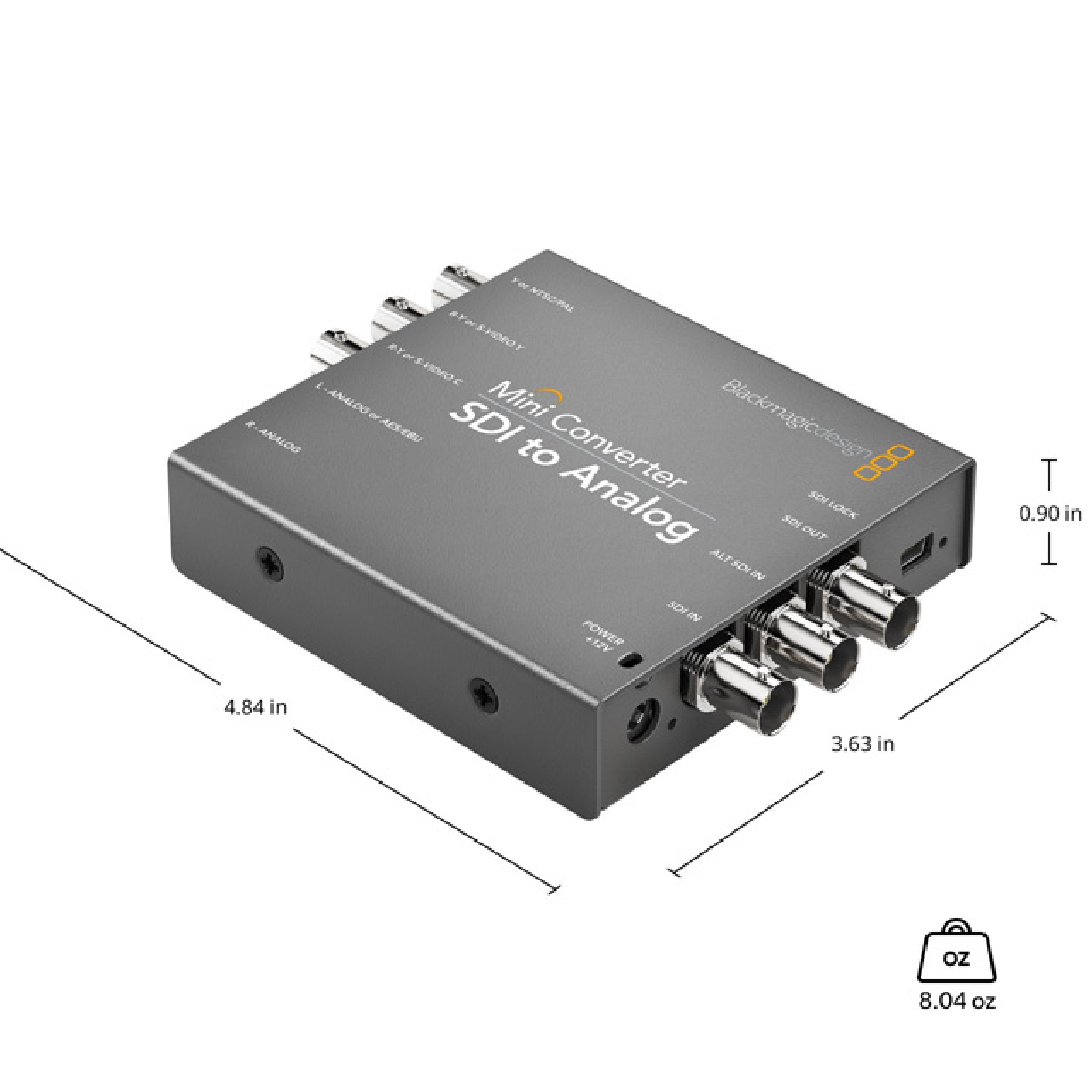

| ზომები | 123 x 92 x 24 mm |
| წონა | 272 g |
Რა არის ყუთში
- მინი გადამყვანი SDI ანალოგზე
- 12V universal power supply with international adapters
- Quick start guide and safety information
Lead Time & Delivery
Special-order item – ships 20 – 28 business days after cleared payment. Automatic tracking updates provided.
Resources
- Full tech specs – view on manufacturer site
