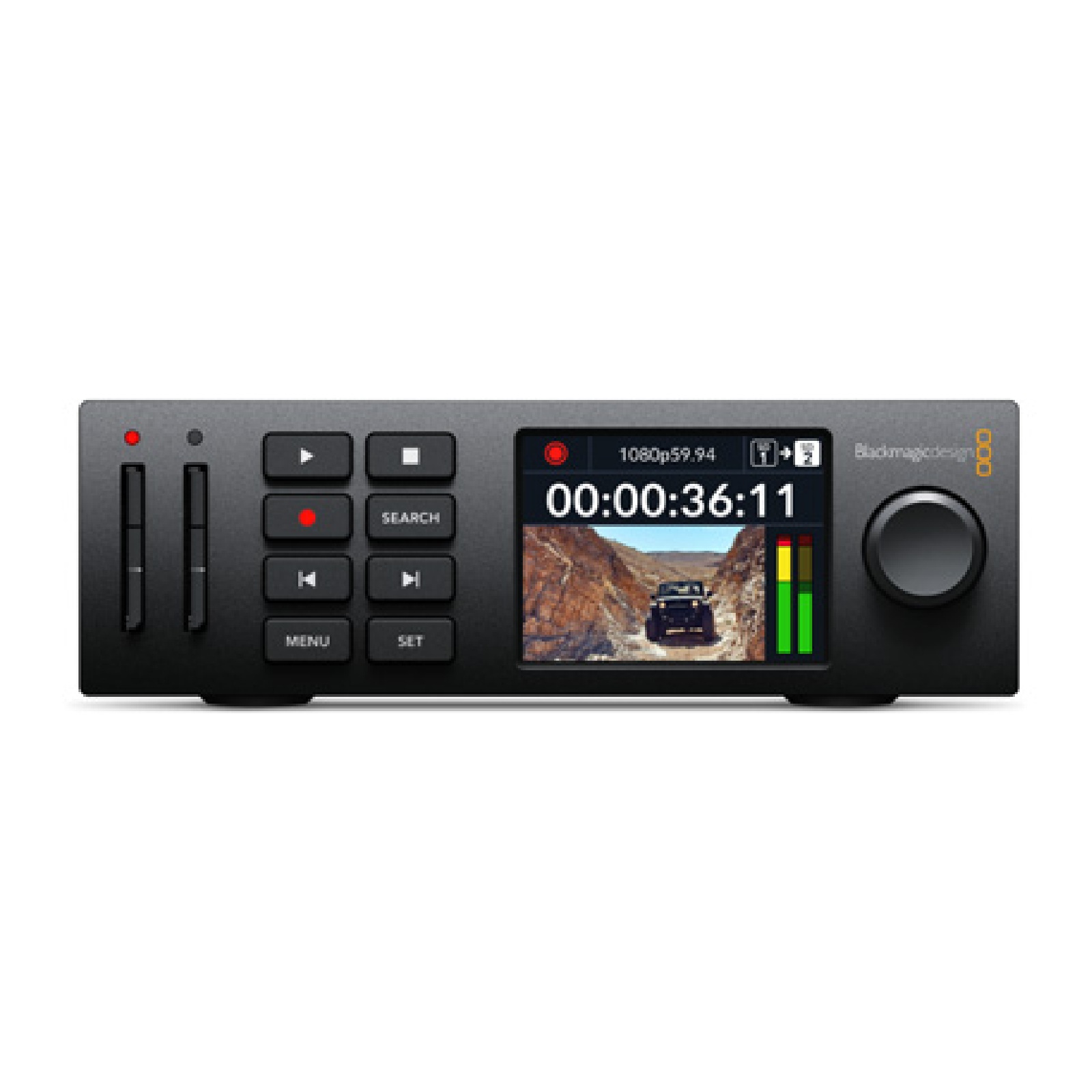

The HyperDeck Studio HD Mini is a professional SD card recorder designed for space-saving broadcast workflows. Featuring 3G-SDI I/O, HDMI output, timecode support, and dual SD card slots, this compact unit delivers exceptional versatility. It supports standard ProRes, DNx, and H.264 recording formats, making it ideal for field, OB, or control room use. Its 1/3 rack-width design allows it to fit alongside other HyperDeck or Teranex gear. InnovatorStore is an authorised reseller with in-house service.
Key Features
- Compact 1/3 rack design for portable or modular systems
- Records in ProRes, DNx, and H.264 formats
- Dual SD card slots for uninterrupted recording
- 3G-SDI input and loop output
- HDMI output for monitoring
- Timecode and reference input/output
- USB-C for external disk recording or webcam streaming
- Compatible with HyperDeck Studio ecosystem

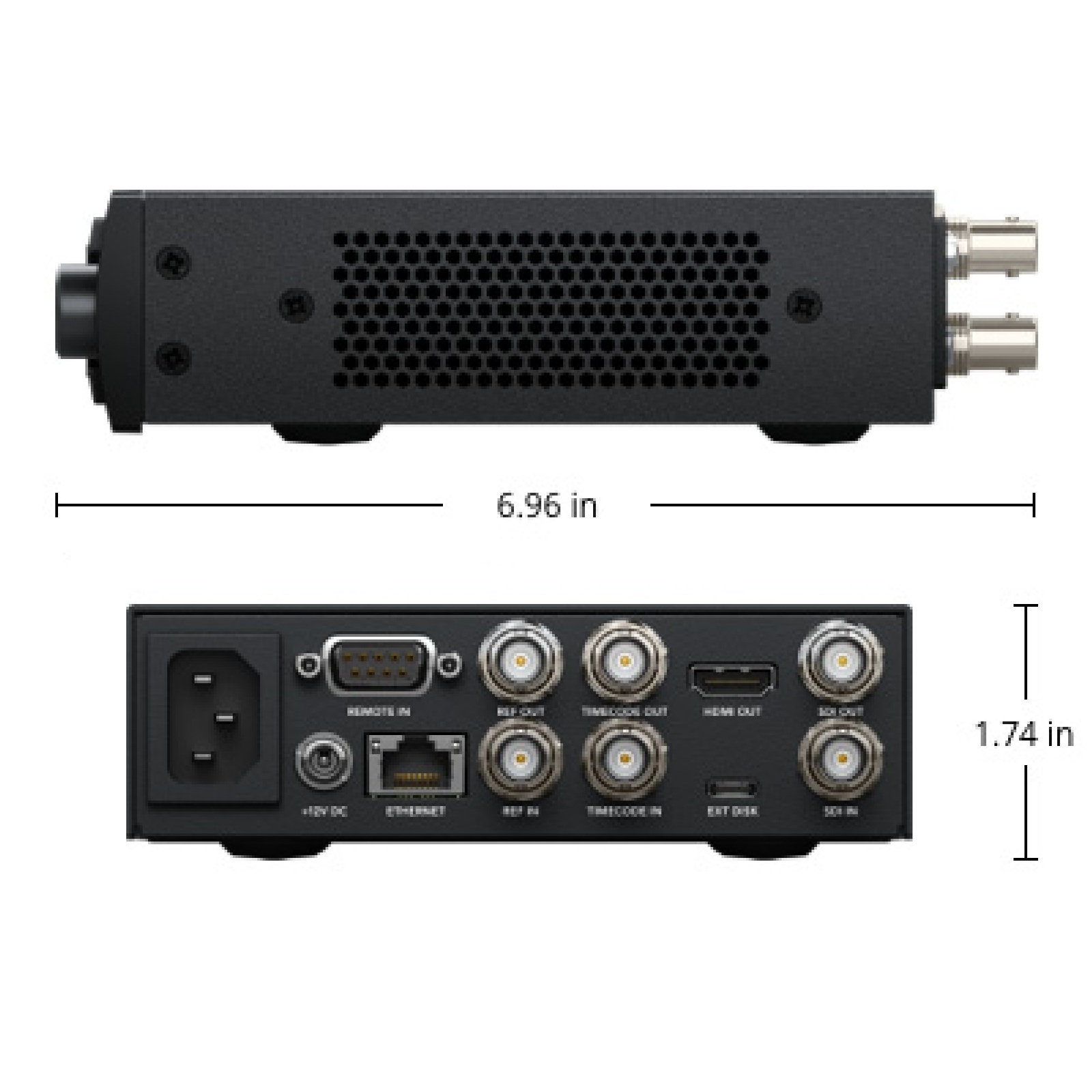

Technical Specifications
| SDI ვიდეო შეყვანა | 1 x 3G-SDI |
| SDI ვიდეო გამომავალი | 1 x 3G-SDI loop |
| HDMI გამომავალი | 1 x HDMI Type A |
| ჩამწერები | 2 x SD card slots |
| USB ინტერფეისი | 1 x USB-C 3.0 (disk/webcam) |
| Timecode I/O | 1 x In, 1 x Out (BNC) |
| მითითების შეყვანა | 1 x BNC |
| კონტროლი | RS-422 port |
Რა არის ყუთში
- HyperDeck Studio HD Mini
- Power cable
- Welcome booklet
Lead Time & Delivery
Special-order item – ships 20 – 28 business days after cleared payment. Automatic tracking updates provided.
Resources
- Full tech specs – view on manufacturer site
