The DeckLink Duo 2 is a compact, multi-channel SDI video card that provides four independent 3G-SDI connections. Each channel can be set to either input or output, enabling flexible configurations for ingest, playout, or mixed workflows. Supporting SD and HD formats up to 1080p60, this multi-channel SDI video card is ideal for developers, OEMs, and system integrators who need powerful I/O in a single PCIe slot. The card also supports key fill and multi-format operations simultaneously across channels, making it a smart solution for broadcast and live production needs.
Key Features

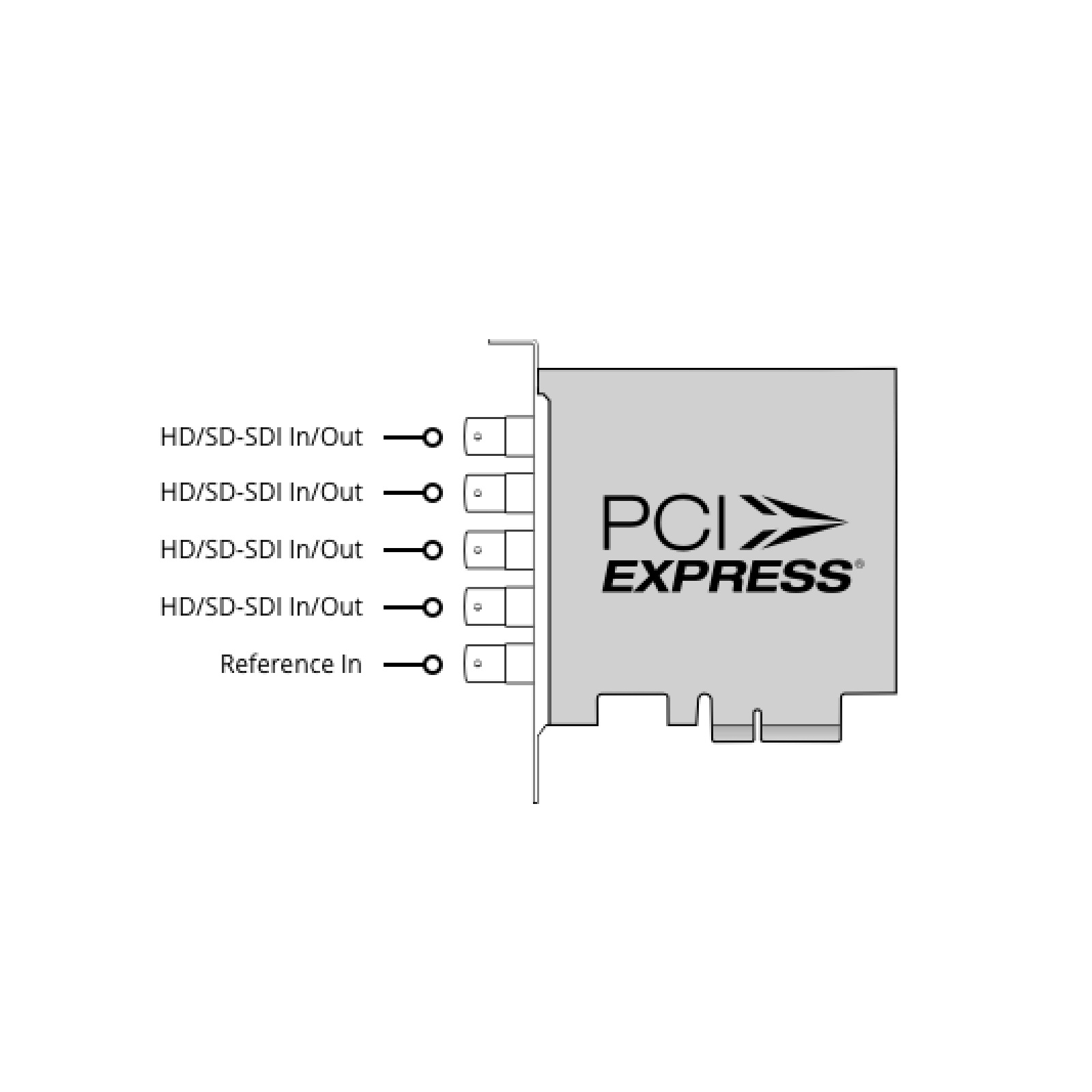

- Four bidirectional 3G-SDI channels
- Each channel independently configurable
- Supports SD and HD up to 1080p60
- Key/fill support for real-time graphics
- Low-profile PCIe form factor
- Compatible with Windows, macOS, and Linux
- Ideal for broadcast automation and ingest
- Real-time video playback and capture
Technical Specifications
| SDI Video I/O | 4 bidirectional 3G-SDI channels |
| SDI Audio | 16 channels embedded audio per input/output |
| Supported Formats | 525i, 625i, 720p, 1080i, 1080p up to 60fps |
| Выборка видео | 4:2:2 and 4:4:4 8/10-bit |
| Цветовое пространство | Rec.601, Rec.709 |
| Интерфейс | PCI Express 2.0 x4 |
| Фактор формы | Low-profile and full-height brackets included |
Что в коробке

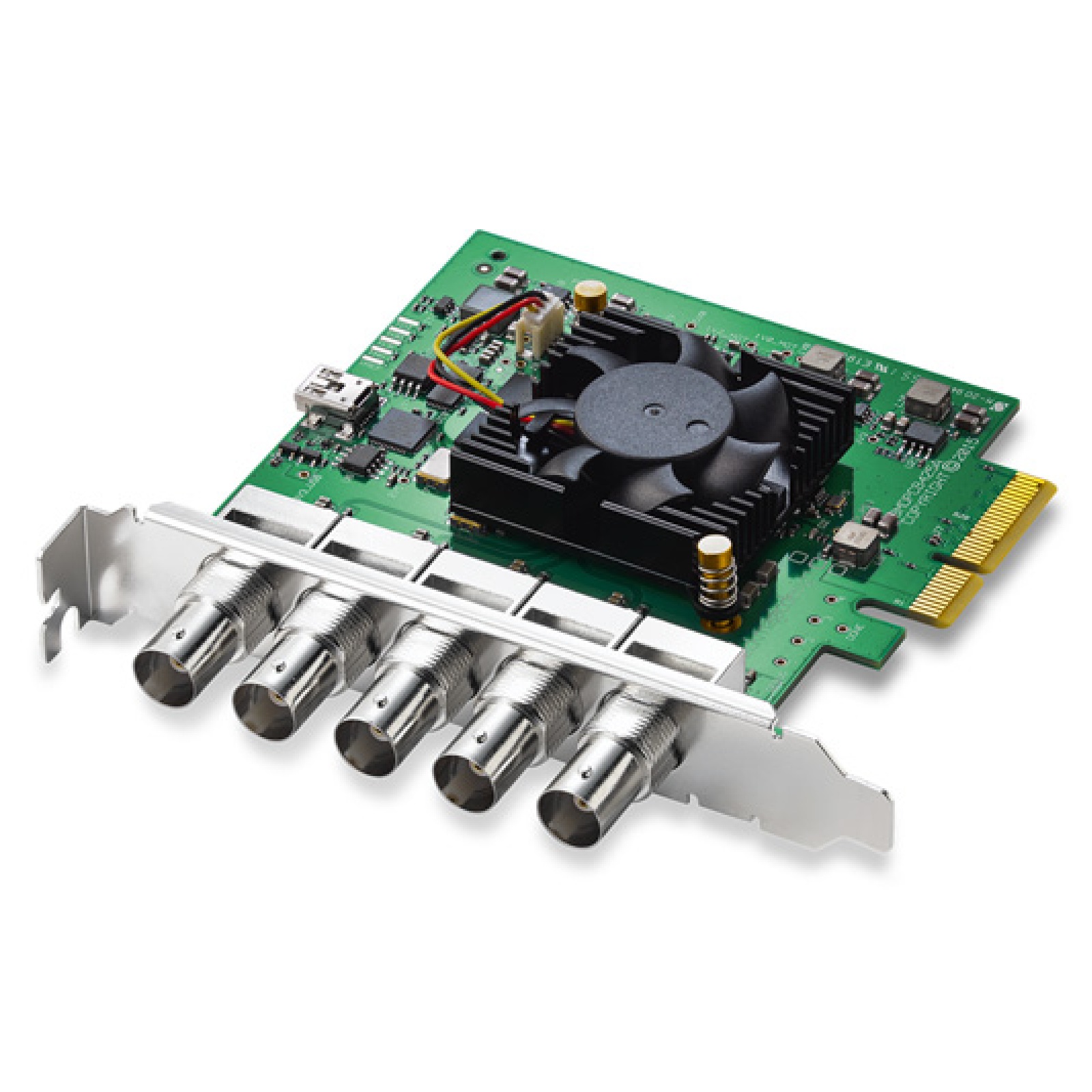

- DeckLink Duo 2 PCIe card
- Low-profile and full-height brackets
- Software and driver download
Lead Time & Delivery
Special-order item – ships 20 – 28 business days after cleared payment. Automatic tracking updates provided.
Resources
- Full tech specs – view on manufacturer site
